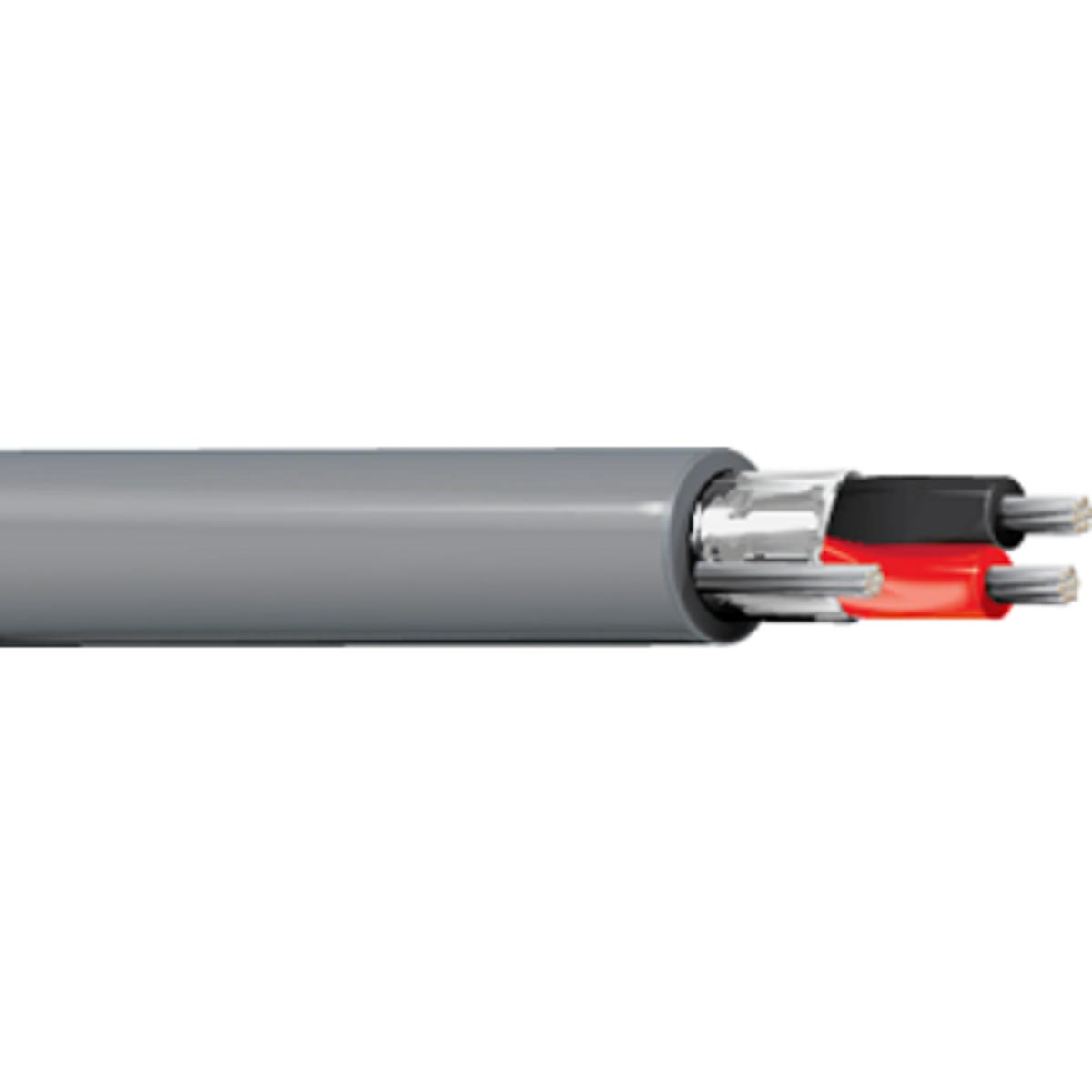

Belden8451 Series 2 Core Line level Low Voltage signal Cable, 0.33 mm² CSA Screened, 3.51mm od, 30m, Black

Belden 8451 Series 2 Core Line level Low Voltage signal Cable, 0.33 mm² CSA Screened, 3.51mm od, 30m, Black

Manufacturer:
Manufacturer Part No:
8451 010100
Enrgtech Part No:
ET13941897
Warranty:
Manufacturer
OMR 25.00
Checking for live stock
Audio Cable Type:
Line level Low Voltage signal Cable
Number of Cores:
2
Cross Sectional Area:
0.33 mm²
Screened/Unscreened:
Screened
Insulation Material:
PP
Outer Diameter:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=114619&DisplayLogo=False
Length:
30m
Minimum Operating Temperature:
-20°C
CPR Certification:
Eca
Maximum Operating Temperature:
+75°C
Sheath Colour:
Black
American Wire Gauge:
22 AWG
Characteristic Impedance:
45 Ω
Sheath Material:
PVC
Conductor Resistance:
47.57218 Ω/km
Current Rating:
2.9 A
Standards Met:
RoHS
Cable Shape:
Twisted Pair
Conductor Strand Type:
Stranded
Core Strands:
7/30
Conductor Material:
Copper
Size of Strands:
30 AWG
Capacitance Core To Core:
111.52pF/m
Number of Strands:
7
Capacitance Core To Screen:
219.76pF/m
Drain Wire:
Yes
Screen Type:
Aluminium/PET Foil
Voltage Rating:
300 V
Series:
8451
pdf icon
A700000007359369.pdf(datasheets)
pdf icon
A700000008616243.pdf(datasheets)
pdf icon
A700000008716572.pdf(datasheets)
