Absolute Maximum Current Measurement:
10000 A ac, 5000 A dcA ac
Absolute Maximum Power Measurement:
10 MW, 10 MVAR, 10 MVAmW
Number of Phases:
1, 3
Maximum Voltage:
1000 V ac, 1200V dc
Best Voltage Measurement Accuracy:
±(0.5 % + 200 mV)
Best Current Measurement Accuracy:
±(0.5 % + 2 mA)
Display Type:
Colour, TFT LCD
Motor Type:
Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Tan, Transients, Unbalance, Voltage
Measurement Standards:
IEC 610101
Interface Type:
USB
Power Source:
Battery, Mains
Battery Type:
Rechargeable NiMH
Model Number p:

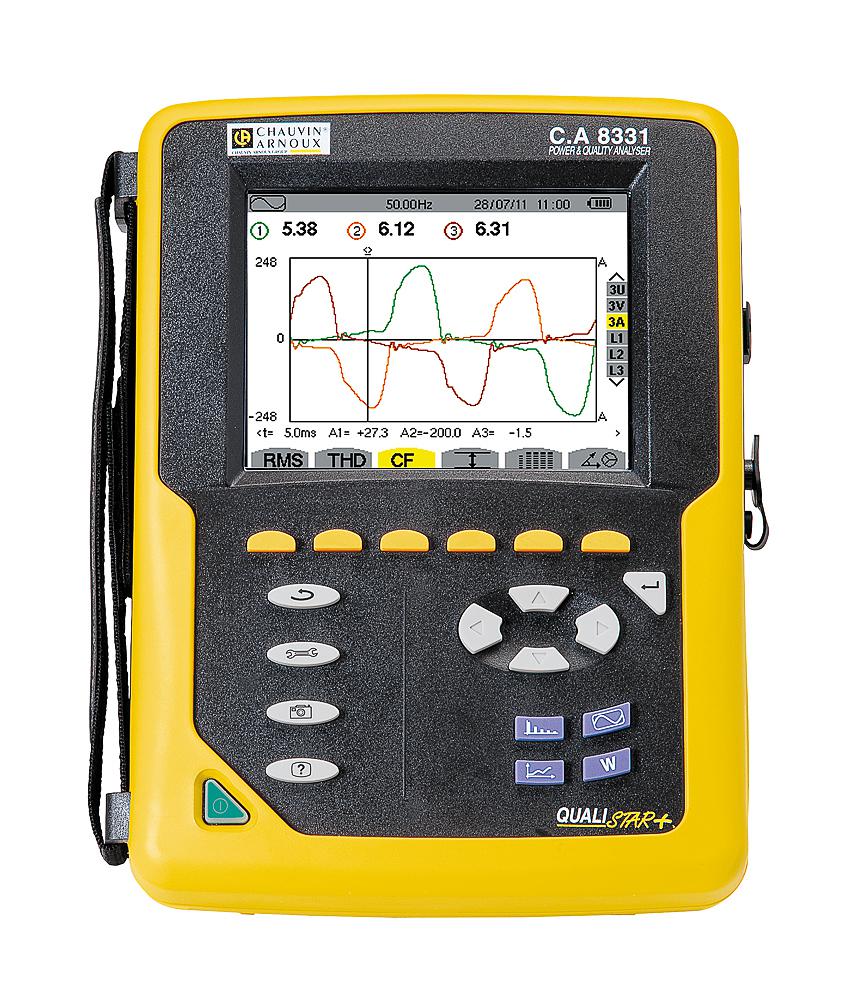

CA 8331
Battery Life:
13 h
Minimum Operating Temperature:
0°C
Height:
55mm
Minimum Frequency:
40 Hz
Length:
240mm
Maximum Operating Temperature:
+50°C
Weight:
1.9kg
Width:
180mm
Dimensions:
240 x 180 x 55mm
Maximum Frequency:
70Hz
