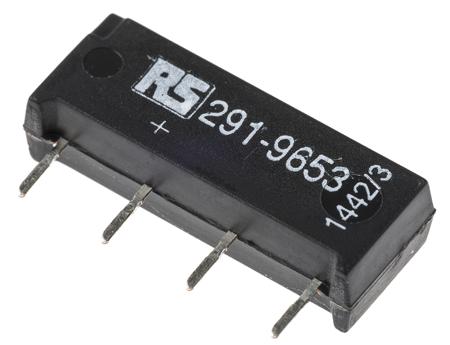

sil12-1a72-bv653 Meder PCB Mount Reed Relay, 12V dc Coil, SPST, 200V dc Max, 1 A Max, 1000Ω
sil12-1a72-bv653 Meder PCB Mount Reed Relay, 12V dc Coil, SPST, 200V dc Max, 1 A Max, 1000Ω

Meder PCB Mount Reed Relay, 12V dc Coil, SPST, 200V dc Max, 1 A Max, 1000Ω

Meder PCB Mount Reed Relay, 12V dc Coil, SPST, 200V dc Max, 1 A Max, 1000Ω

Manufacturer:
Meder
Manufacturer Part No:
SIL12-1A72-BV653
Enrgtech Part No:
ET14069973
Warranty:
Manufacturer
OMR 1.94 OMR 1.94
Checking for live stock
Contact Configuration:
SPST
Coil Voltage:
12V dc
Mounting Type:
PCB Mount
Maximum Switching Current AC:
1 A
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
200V ac
Maximum Switching Voltage DC:
200V dc
Coil Power:
144mW
Coil Resistance:
1000Ω
Length:
19.8mm
Height:
7.8mm
Depth:
5.08mm
Dimensions:
19.8 x 5.08 x 7.8mm
Isolation Coil To Contact:
1.5kV dc
Maximum Switching Power DC:
20 W
Terminal Type:
Through Hole
Maximum Operating Temperature:
+70°C
Life:
5000000 (Electrical) cycles
Operating Temperature Range:
-20 → +70°C
Minimum Operating Temperature:
-20°C
Contact Material:
Rhodium
Contact Resistance:
150 (Static) mΩ, 200 (Dynamic) mΩ
Operating Time Including Bounce:
0.5ms
pdf icon
0900766b8002856b.pdf(datasheets)
pdf icon
0900766b800b68b1.pdf(datasheets)
